ASTM A500 GR.B Square Carbon Steel Tube Cutting Head Seamless Hot Rolled
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Carbon Steel Tube | Material | A500 Q215 Q195 Q235 Q345 A36 SS400 A53 A514 |
|---|---|---|---|
| Diameter | 2-100mm Or As Required | Type | Seamless Or Welded |
| Technique | Hot Rolled,cold Rolled | Trade Terms | FOB CIF CFR EXW |
| High Light | 2 Inch square carbon steel tube,1.5 Inch square carbon steel tube,ASTM A500 GR.B carbon square tube |
||
Product Description

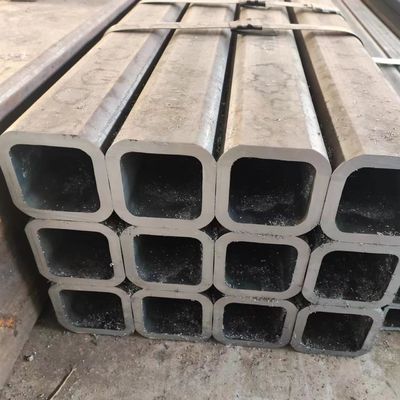

ASTM A500 GR.B Square Carbon Steel Tube Cutting Head Seamless Hot Rolled
Product Description
A500 grade B steel pipe is primarily used for general structural purposes, such as columns, beams, and other load-bearing applications. It has a minimum yield strength of 46,000 psi (or 315 MPa) and a minimum tensile strength of 58,000 psi (or 400 MPa). Grade B pipes are suitable for welded, riveted, or bolted construction.
The A500 Tubes are acceptable oxidation resistance, pitting protection from an acidic climate, crevice erosion obstruction, great strength, and solidness. The tubes are a great idea to be utilized in tough situations because of their great durability and hardness. ASTM A500 Tube is helpful in numerous modern applications because of its astounding general attributes. This grade has great mechanical properties and good resistance to corrosion. The ASME SA500 Tubes item range that we stock is made utilizing trend setting innovation and current machines and is sturdily manufactured. These tubes as a result of greatness in their quality have become highly popular.
|
Product Name
|
Carbon Steel Pipe
|
|
Wall Thickness
|
1.5mm-100mm or as required
|
|
Length
|
3m-12m or as required
|
|
Tolerance
|
Wall Thickness:±0.05MM Length:±6mm Outer Diameter:±0.3MM
|
|
Shape
|
Round, Square, Rectangle, Oval, Deformed
|
|
Material
|
Q195-Q345, 10# ,20#,45#,195-Q345, Gr.B-Gr.50, S235JR, SS400, SPHC,BS-040A10,
16mn, 40cr, 42crmo, 27simn, 12cr1mov, 15crmo, Gcr15,25mn2 A500 A588
|
|
Technique
|
Cold rolled, Hot Rolled
|
|
Standard
|
ASTM, DIN, JIS, BS
|
|
Certificate
|
ISO, CE, BV
|
|
Delivery times
|
Delivered within 7-15 days after receipt of deposit
|
|
Package
|
1. Packed with 8 bundles tightened with metal belt and plastic wrapped if need
2. According to customer’s requirement |
|
Application
|
Widely used in furniture,interior decoration, fluid pipeline, petroleum and natural gas industry, drilling, pipeline, structure
|
Product Detail
Chemical Composition of A500 Carbon Steel Tube
| Grade | C | M | P | S | Cu |
| Gr.A | 0.26 | 1.35 | 0.035 | 0.035 | 0.20 |
| Gr.B | 0.30 | 1.40 | 0.045 | 0.045 | 0.18 |
| Gr.C | 0.23 | 1.35 | 0.035 | 0.035 | 0.20 |
| Gr.D | 0.27 | 1.40 | 0.045 | 0.045 | 0.18 |
Mechanical Properties of ASTM A500 Carbon Steel Tube
| Grade | Tensile Strength | Yield Strength | Elongation |
| Gr.A | 310 | 230 | 25 |
| Gr.B | 400 | 290 | 23 |
| Gr.C | 425 | 315 | 21 |
| Gr.D | 400 | 250 | 23 |
Size
| Products | OD | W.T. | Standard | Length |
| Seamless pipe | 1/2" to 24" | SCH20,30,40,60,STD XS,80 | ASTM A106/API 5L GR.B | 5.8m,24m, |
| ASTM A53Gr.B | 5m to 24m random | |||
| Pipe line | 3" to 18" | SCH20,30,40,60,STD XS | API5LGR.B/X42,X52,X60 | 5.8m,24m, |
| 5m to 24m random | ||||
| ERW Steel pipe | 1" to 28" | SCH20,30,40,60,STD XS,80 | ASRM A53GR.B | 5.8m,24m, |
| 5m to 24m random | ||||
| Spiral steel pipe | 8" to 36" | SCH20,30,40,60,STD XS,80 | AY/T5037-2001 | 5.8m,6m, |
| 5m to 24m random |
Recommend Products
Application
Package & Shipping
Certification
FAQ
1. What are your company's main products?
Our main products are stainless steel pipe and plate, seamless steel pipe, galvanized steel pipe,petroleum pipe, helical welded pipe, wear resistant steel plate, cold rolled/hot rolled coil steel, Angle steel, I-beam steel, H-beam steel, channel steel, etc.
2. Can I get some samples?
Yes, we glad to provide free samples for you.
3. Can we visit your factory?
Sure, we welcome you to visit our factory, check our production lines and know more about our strength and quality.
4: Are you factory or trader?
Our company has been manufacturing and selling steel products for many years since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
5. How long is your delivery time?
Generally it is 7 days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
