OEM Shipbuilding Rolled Steel Section Equal Angle Bar GL-A CCS-A

Place of Origin China
Brand Name ANSTEEL
Certification JIS G3101
Model Number SGCC, SGCD, SGHC, DX51D, DX54D, S550GD
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Seaworthy Packing for Exporting
Delivery Time 7-10 days
Payment Terms L/C, T/T, Western Union
Supply Ability 50000 Tons/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Q235 Q345 A36 S235jr S275jr S355jr Type Equal And Unequal
Technology Hot Rolled Standard AISI, ASTM, DIN, GB
Testing Third Party Inspection Available Shape Angel
Certification ISO , BV Surface Treatment Mill Finish
High Light

GL-A Rolled Steel Section

,

CCS-A Rolled Steel Section

,

OEM Equal Angle Bar

Leave a Message
Product Description

Hot Rolled Equal Steel Angle Bar Shipbuilding GL-A CCS-A


GB/T706-2008(instead of GB/T9787-88 GB/T9788-88) (hot rolled equilateral/unequal Angle steel dimensions, shape, weight and allowable deviation);

Jisg3192-94 (Shape, Size, weight and Tolerances of hot-rolled sections);

Din 17100-80 (Quality standard for ordinary structural steel);


Product Description


Product
lAngle bar
Size
20#~250#(Check all size we can provide as equal angle steel size list shown below)
Thickness
3mm~35mm
Length
6M/9M/10M/12M, OR Cut as your demands
Technique
Cold Drawn/ Cold Pilfered/ Cold Rolled/ Hot Rolled/ Forged
Other processing service
Hot dip Galvanized, Pre-galvanized, Color Painting, Coated, Cutting, Bending,
Punching as long as you can tell us your requirement.

Offer Standards
ASTMA53/ASTM A573/ASTM A 283/ASTM A36
BS1387-1985/BS EN10025/BS970
GB/T3091-2001, GB/T13793-92, ISO630/E235B/
JIS G3101/JIS G3136/JIS G3106
DIN17100/DIN 1.0038/DIN1025-5
Materials
A36
Q235/Q235B/Q345/Q345B/
S235JR/S235/S355JR/S355/ST37-2/ST52-3/
SS400/SM400A/SM400B/SS490/SM490/SS540
stainless: 200/300/400 series
MTC Report or any other requested test can be offered together with shipping document
PAYMENT TERMS :
1.100% irrevocable L/C at sight.
2.30% T/T prepaid and the balance against the copy of B/L.
3.30% T/T prepaid and the balance against L/C
Brand
Jinxi steel ,Ma Steel,Laiwu steel,Rizhao steel,Tang Steel
Certificate
ISO, SGS, CE, CQC and third part inspection.




Size (MM)

theoretical
weight (KG/M)

Size (MM)

theoretical
weight (KG/M)

Size (MM)

theoretical
weight (KG/M)

Size (MM)

theoretical
weight (KG/M)

Size (MM)

theoretical
weight (KG/M)

20*30.88963*87.46990*1013.476130*1019.800180*1848.634
20*41.14563*109.15190*1215.940130*1223.600200*1442.894
25*20.76365*55.000100*69.366130*1325.400200*1545.300
25*41.45965*65.910100*710.830130*1427.200200*1648.680
30*20.92265*87.660100*812.276130*1630.900200*1854.401
30*31.37370*55.397100*1015.120140*1021.488200*2060.056
30*41.78670*66.406100*1217.898140*1225.522200*2471.168
40*31.85270*77.398100*1623.257140*1429.490200*2573.600
40*42.42270*88.373110*711.928140*1633.393220*1653.901
40*52.97675*55.818110*813.532150*920.700220*1860.250
45*42.73675*66.905110*1016.690150*1023.000220*2066.533
45*53.36975*77.976110*1219.782150*1227.300220*2272.751
50*32.33275*89.030110*1422.809150*1431.600220*2478.902
50*43.05975*1011.089120*814.880150*1533.800220*2684.987
50*53.77075*910.060120*1018.370160*1024.729250*1868.956
50*64.46580*56.211120*1221.666160*1229.391250*2076.180
56*43.44680*67.376120*1018.370160*1433.987250*2490.433
56*54.25180*78.525120*1221.666160*1638.581250*2593.770
60*54.52080*89.658125*815.504175*1231.800250*2697.461
60*65.42080*1011.874125*1019.133175*1539.400250*28104.422
63*43.90790*68.350125*1222.696180*1233.159250*30111.318
63*54.82290*79.656125*1426.193180*1438.382250*32118.149
63*65.72190*810.946130*917.900180*1643.542250*35128.271
        250*35128.271

Product Show

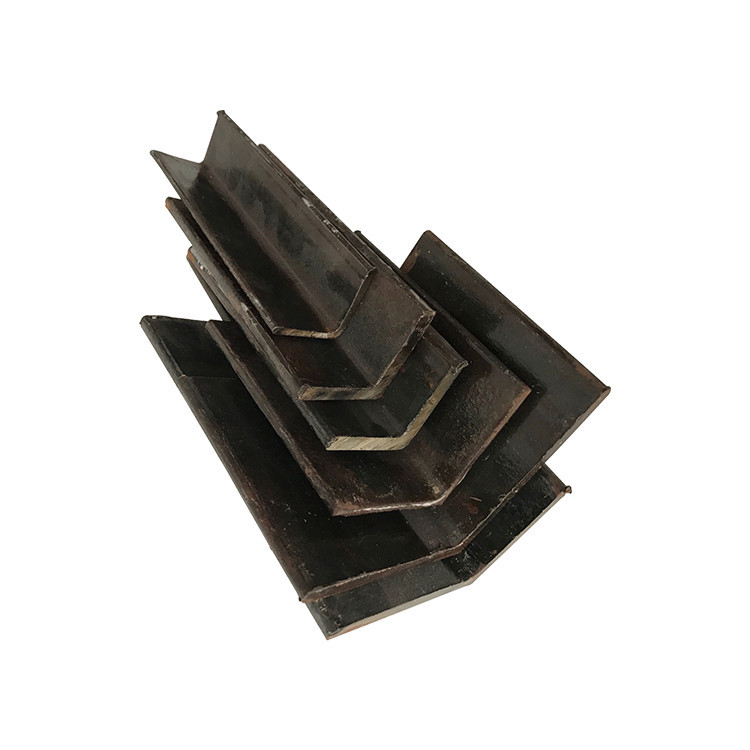

OEM Shipbuilding Rolled Steel Section Equal Angle Bar GL-A CCS-A 0

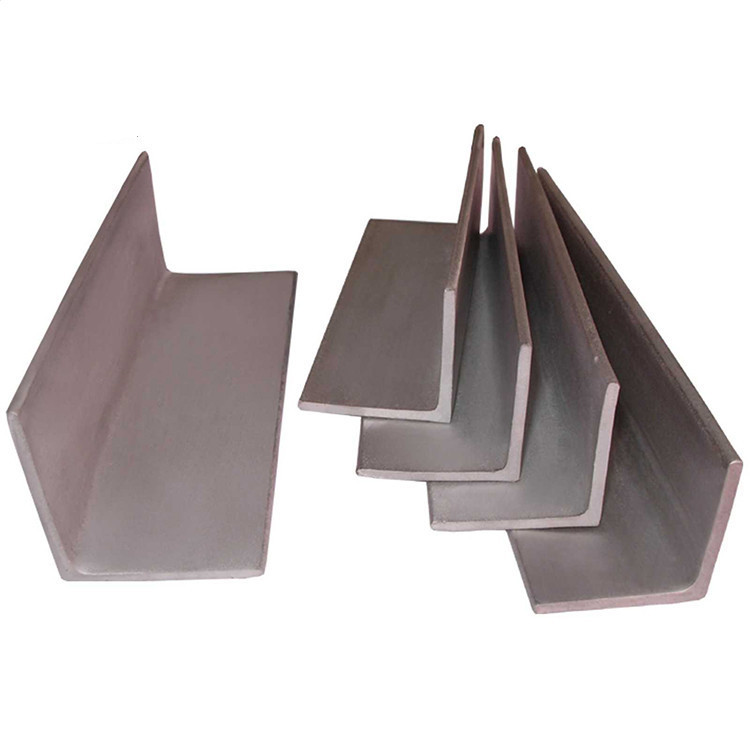

OEM Shipbuilding Rolled Steel Section Equal Angle Bar GL-A CCS-A 1


Package & Delivery

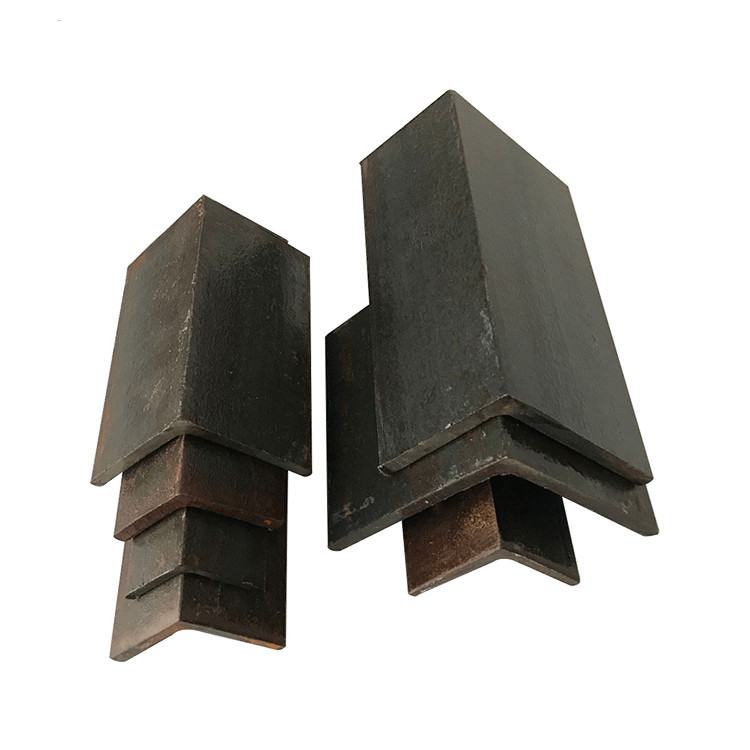

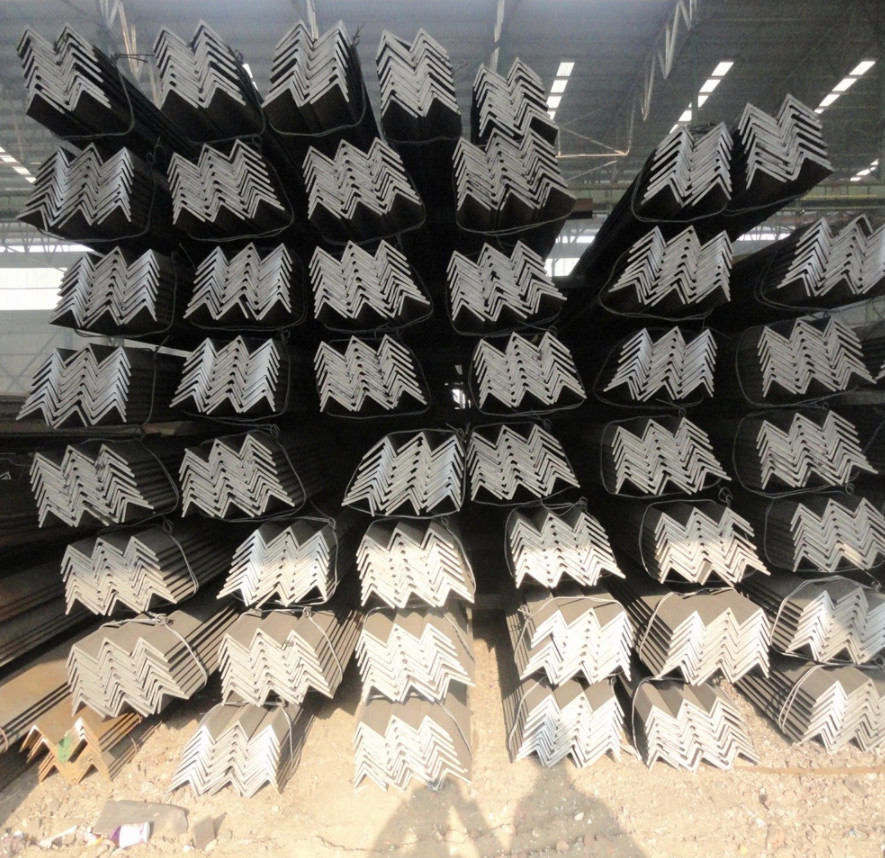

OEM Shipbuilding Rolled Steel Section Equal Angle Bar GL-A CCS-A 2


Certification
OEM Shipbuilding Rolled Steel Section Equal Angle Bar GL-A CCS-A 3

Hot products
OEM Shipbuilding Rolled Steel Section Equal Angle Bar GL-A CCS-A 4


FAQ
Q: Do you provide samples ?How can I get a sample to check your quality? Is it free or extra ?
A: Free samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q: How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we take a test before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Q: Are you factory or trader?
A: Our company has been manufacturing and selling steel products for many years since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
