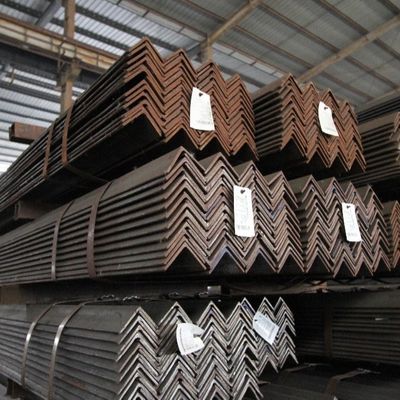

Hot Rolled Equal Steel Angle Bar for Shipbuilding GL-A CCS-A S355jr
| Place of Origin | China |
|---|---|
| Brand Name | ANSTEEL |
| Certification | JIS G3101 |
| Model Number | SGCC, SGCD, SGHC, DX51D, DX54D, S550GD |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | Seaworthy Packing for Exporting |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50000 Tons/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | Q235 Q345 A36 S235jr S275jr S355jr | Type | Equal And Unequal |
|---|---|---|---|
| Technology | Hot Rolled | Standard | AISI, ASTM, DIN, GB |
| Testing | Third Party Inspection Available | Shape | Angel |
| Certification | ISO , BV | Surface Treatment | Mill Finish |
| High Light | S355jr Equal Steel Angle Bar,CCS-A Equal Steel Angle Bar,GL-A equal angle steel |
||
Product Description
Hot Rolled Equal Steel Angle Bar Shipbuilding GL-A CCS-A
Unequal Angle steel is widely used in all kinds of metal structures, Bridges, machinery manufacturing and shipbuilding industry, all kinds of building structures and engineering structures, such as beams, Bridges, power transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, containers and warehouses
Product Description
| Standard Equivalent | ||||||||
| China GB/T,YB |
America ASTM |
Japan JIS |
Germany DIN EN |
England BS EN |
France NF EN |
ISO | Korea KS |
India IS |
| Q195 | Grade B |
SS330 |
S185(1.0035) | E185 Fe(310) |
D | |||
| Q215 | Grade C CS Type B |
SS330 (SS34) |
Fe-330 | |||||
| Q235-A | Grade D | SS400 | S235JR (1.0038) | E235 A E235 B E235 C E235 D |
SS400 (SS41) |
|||
| Q235-B | S235J0(1.0114) | Fe-410 | ||||||
| Q235-C | S235J2(1.0117) | |||||||
| Q235-D | S235JR(1.0038) | |||||||
| Q275 | SS Grade 40 (275 ) |
SS490 | S275JR(1.0044) S275J0(1.0143) S275J2(1.0145) |
E275 (Fe430) |
SS490 | Fe-490 | ||
| Q345-A | Grade 50 (345) |
SPFC590 | E355(1.0060) | E355 | ||||
| Q345-B | S355JR(1.0045) | |||||||
| Q345-C | S355J0(1.0553) | |||||||
| Q345-D | S355J2(1.0577) | |||||||
| Q345-E | S355NL(1.0546) | |||||||
|
Equal Angle Steel Sizes
|
|||||||||
|
Size
(MM)
|
Weight
(KG/M)
|
Size
(MM)
|
Weight
(KG/M)
|
Size
(MM)
|
Weight
(KG/M)
|
Size
(MM)
|
Weight
(KG/M)
|
Size
(MM)
|
Weight
(KG/M)
|
| 25*3 | 1.124 | 70*5 | 5.397 | 100*12 | 17.898 | 160*10 | 24.729 | 200*25 | 73.600 |
| 25*4 | 1.459 | 70*6 | 6.406 | 100*16 | 23.257 | 160*12 | 29.391 | 220*16 | 53.901 |
| 30*3 | 1.373 | 70*7 | 7.398 | 110*8 | 13.532 | 160*14 | 33.987 | 220*18 | 60.250 |
| 30*4 | 1.786 | 70*8 | 8.373 | 110*10 | 16.690 | 160*16 | 38.581 | 220*20 | 66.533 |
| 40*3 | 1.852 | 75*5 | 5.818 | 110*12 | 19.782 | 175*12 | 31.800 | 220*22 | 72.751 |
| 40*4 | 2.422 | 75*6 | 6.905 | 110*14 | 22.809 | 175*15 | 39.400 | 220*24 | 78.902 |
| 40*5 | 2.976 | 75*7 | 7.976 | 120*12 | 21.666 | 180*12 | 33.159 | 220*26 | 84.987 |
| 50*4 | 3.059 | 75*8 | 9.03 | 120*10 | 18.370 | 180*14 | 38.382 | 250*18 | 68.956 |
| 50*5 | 3.770 | 75*10 | 11.089 | 120*12 | 21.666 | 180*16 | 43.542 | 250*20 | 76.180 |
| 50*6 | 4.465 | 80*6 | 7.376 | 125*8 | 15.504 | 180*18 | 48.634 | 250*24 | 90.433 |
| 60*5 | 4.520 | 80*10 | 11.874 | 125*10 | 19.133 | 200*14 | 42.894 | 250*25 | 93.770 |
| 60*6 | 5.420 | 90*8 | 10.946 | 125*12 | 22.696 | 200*15 | 45.300 | 250*26 | 97.461 |
| 63*4 | 3.907 | 90*10 | 13.476 | 125*14 | 26.193 | 200*16 | 48.680 | 250*28 | 104.422 |
| 63*5 | 4.822 | 90*12 | 15.940 | 140*10 | 21.488 | 200*18 | 54.401 | 250*30 | 111.318 |
| 63*6 | 5.721 | 100*8 | 12.276 | 140*12 | 25.522 | 200*20 | 60.056 | 250*32 | 118.149 |
| 63*8 | 7.469 | 100*10 | 15.120 | 140*14 | 29.490 | 200*24 | 71.168 | 250*35 | 128.271 |
|
Unequal Angle Steel Sizes
|
|||||
| Size (MM) |
Theoretical weight (KG/M) |
SIZE (MM) |
Theoretical weight (KG/M) |
SIZE (MM) |
Theoretical weight (KG/M) |
| 125*75*7 | 10.700 | 100*80*10 | 13.476 | 180*110*16 | 34.649 |
| 125*75*8 | 12.200 | 110*70*6 | 8.350 | 200*125*12 | 29.761 |
| 125*75*9 | 13.600 | 110*70*7 | 9.656 | 200*125*14 | 34.436 |
| 125*75*10 | 15.000 | 110*70*8 | 10.946 | 200*125*16 | 39.045 |
| 125*75*12 | 17.800 | 110*70*10 | 13.476 | 200*125*18 | 43.588 |
| 45*30*4 | 2.251 | 125*80*7 | 11.066 | 200*125*20 | 47.885 |
| 50*32*4 | 2.494 | 125*80*8 | 12.551 | 100*75*6 | 8.060 |
| 56*36*4 | 2.818 | 125*80*10 | 15.474 | 100*75*7 | 9.340 |
| 63*40*5 | 3.466 | 125*80*12 | 18.330 | 100*75*8 | 10.600 |
| 63*40*6 | 3.920 | 140*90*8 | 14.160 | 100*75*9 | 11.800 |
| 75*50*5 | 4.638 | 140*90*10 | 17.475 | 100*75*10 | 13.000 |
| 75*50*6 | 4.808 | 140*90*12 | 20.724 | 100*75*12 | 15.350 |
| 75*50*8 | 5.699 | 140*90*14 | 23.908 | 150*90*8 | 14.700 |
| 90*56*6 | 7.431 | 160*100*10 | 19.872 | 150*90*9 | 16.400 |
| 90*56*8 | 6.717 | 160*100*12 | 23.592 | 150*90*10 | 18.200 |
| 100*63*6 | 8.779 | 160*100*14 | 27.035 | 150*90*12 | 21.600 |
| 100*63*8 | 7.550 | 160*100*16 | 30.835 | 200*100*10 | 23.000 |
| 100*63*10 | 9.878 | 180*110*10 | 22.273 | 200*100*12 | 27.620 |
| 100*80*6 | 12.142 | 180*110*12 | 26.464 | 200*100*15 | 30.040 |
| 100*80*8 | 10.946 | 180*110*14 | 30.589 | ||
Product Show
Package & Delivery
Certification
Hot products
FAQ
Q: Do you provide samples ?How can I get a sample to check your quality? Is it free or extra ?
A: Free samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q: How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we take a test before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Q: Are you factory or trader?
A: Our company has been manufacturing and selling steel products for many years since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
