Hot Rolled Steel Channel U Iron Bar For Construction 6mm-13mm Thickness
| Place of Origin | China |
|---|---|
| Brand Name | ANSTEEL |
| Certification | JIS G3302, ASTM A653M/A924M, EN10327 |
| Model Number | SGCC, SGCD, SGHC, DX51D, DX54D, S550GD |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | Seaworthy Packing for Exporting |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50000 Tons/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Length | 1-12m | Price Term | FOB, CRF, CIF, EXW |
|---|---|---|---|
| Technology | Hot Rolled | Thickness | 6-13mm |
| Testing | Third Party Inspection Available | Shape | U Channel |
| Grade | Q235/Q195/Q345/SS400 | ||
| Highlight | 13mm U Iron Bar,6mm U Iron Bar,13mm Steel Channel Bar |
||
Product Description
Iron U Bar Hot Rolled Steel Channel Bar For Construction
Channel steel use and mechanical use carbon structural steel, is a complex section steel, steel its section shape is slotted.Channel steel is mainly used for building structure and vehicle manufacturing, etc. In use for its good welding, riveting performance and comprehensive mechanical properties.Of channel steel billet raw material for carbon content less than 0.25% of the carbon steel or low alloy steel billet. Finished product channel steel by thermal forming and normalizing or hot rolling state delivery.
Product Description
| Product | post-tensioned anchorages u bar c purlin and z purlin/Prime hot rolled mild steel u bar | |
| size | 160*63*8.5mm | |
| Length | 6m/12m | |
| Standard | AISI,ASTM,JIS,DIN,BS,EN etc. | |
| Material | Q235,Q345,Q195 etc. | |
| Shape | U channel | |
| Technique | Hot rolled & Welded | |
| Application |
1.Industrial structure of the steel structure bearing bracket. 2.Underground engineering steel pile and retaining structure. 3.Petrochemical and electric power and other industrial equipment structure 4.Large span steel bridge components 5.Ships, machinery manufacturing frame structure 6.The train, automobile, tractor beam bracket 7.Port of conveyor belt, high speed damper bracket |
|
| Package | Standard seaworthy packing or as required | |
| Port of Shipment | Shanghai Port, China | |
| Date of Delivery | 10-15 days after received the deposit | |
| MOQ | 10T | |
| Production | 5000t/ month | |
| Payment | T/T, L/C, Western union etc. | |
| Grade | Section size | Section square(m2) | weight(kg/m2) | ||||
| h | b | d | r | r1 | |||
| 5 | 5o | 37 | 4.5 | 7 | 3.5 | 6.93 | 5.44 |
| 6.3 | 63 | 40 | 4.8 | 7.5 | 3.8 | 8.45 | 6.63 |
| 6.5 | 65 | 40 | 4.3 | 7.5 | 3.8 | 8.55 | 6.71 |
| 8 | 8o | 43 | 5 | 8 | 4 | 10.25 | 8.05 |
| 10 | 100 | 48 | 5.3 | 8.5 | 4.2 | 45.75 | 10.01 |
| 12 | 120 | 53 | 5.5 | 9 | 4.5 | 15.36 | 12.06 |
| 12.6 | 126 | 53 | 5.5 | 9 | 4.5 | 15.69 | 12.32 |
| 14a 14b |
140 | 58 60 |
6.0 8.0 |
9.5 | 4.8 | 18.51 21.316 |
14.53 16.733 |
| 16a 16b |
160 | 63 65 |
6.5 8.5 |
9.5 | 4.8 | 21.96 25.162 |
17.24 19.752 |
| 18a 18b |
180 | 68 70 |
7.0 9.0 |
10.5 | 5.2 | 25.7 29.299 |
20.17 23.0 |
| 20a 20b |
200 | 73 75 |
7.0 9.0 |
11 | 5.5 | 28.84 32.837 |
22.63 22.63 |
| 22a 22b |
220 | 77 79 |
7.0 9.0 |
11.5 | 5.8 | 31.86 36.246 |
25.78 28.453 |
| 24a 24b 24c |
240 | 78 80 82 |
7.0 9.0 11.0 |
12 | 6 | 34.22 39.02 43.82 |
26.86 30.63 34.396 |
| 25a 25b 25c |
250 | 78 80 82 |
7.09.011.0 | 12 | 6 | 34.92 39.917 44.917 |
27.41 31.335 35.26 |
| 27a 27b 27c |
270 | 82 84 86 |
7.5 9.5 11.5 |
12.5 | 6.2 | 39.28 44.684 50.084 |
30.84 38.077 39.316 |
| 28a 28b 28c |
280 | 82 84 86 |
7.5 9.5 11.5 |
12.5 | 6.2 | 40.04 45.634 51.634 |
31.43 35.823 40.219 |
| 30b 30c |
300 | 85 87 89 |
7.5 9.5 11.5 |
13.5 | 6.8 | 43.9 49.9 55.9 |
34.46 39.17 43.88 |

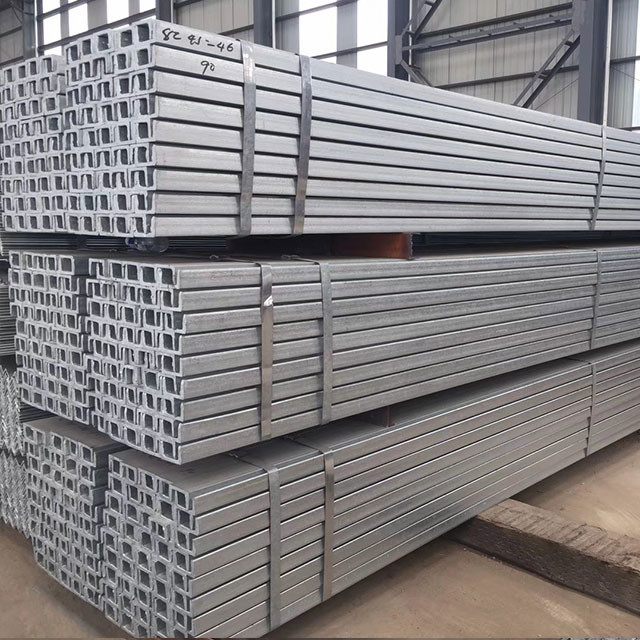

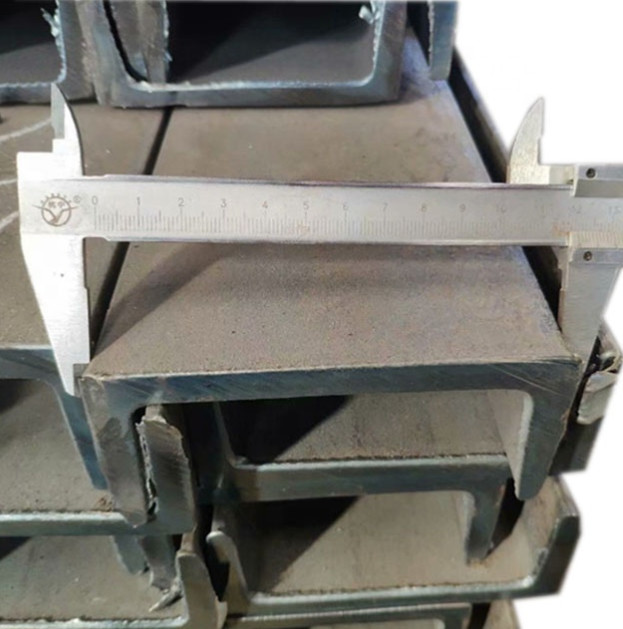

Product Show
Package & Delivery
Certification
Hot products
FAQ
Q: Do you provide samples ?How can I get a sample to check your quality? Is it free or extra ?
A: Free samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q: How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we take a test before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Q: Are you factory or trader?
A: Our company has been manufacturing and selling steel products for many years since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
